Drawing Tools - How it works
Only expensive CAD solutions contain anything like our array functions. Array functions have always been a strong side of CAD. Now four great arrays are in Tech Drawing Tools . |
 |

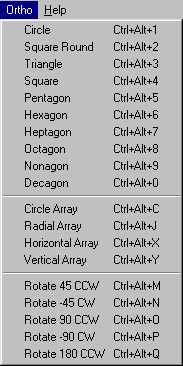

The Ortho Menu

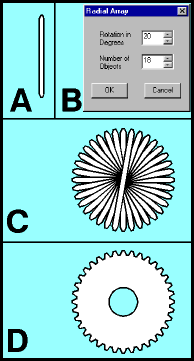

A. Orthographic primitive inserted from one of the Symbol Libraries. B. Selecting "Radial Array" from the menu brings up a Dialog Box which asks for input on the rotation in degrees and number of objects. C. Clicking OK completes the process. D. By adding two circles and choosing Corel's weld command, a gear shape is produced in minutes. |
 |
|
|
