Isometric Tools - How it works

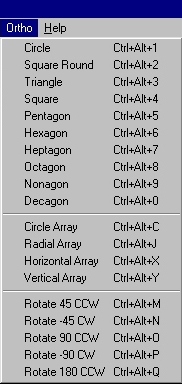

Orthographic Menu

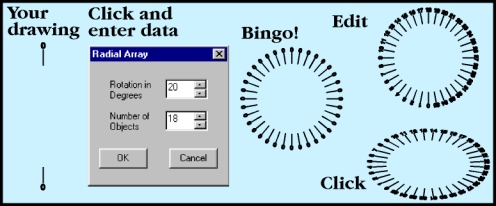

Under the Ortho menu there are shortcuts to create 10 orthographic primitives of shapes ranging from a circle through a decagon. Next, under the Ortho menu are 4 array functions that replace using blends with actual copies or clones of the original object thus avoiding degradation to the added objects. Very useful for creating gears, dial faces, grill cutouts, connector pins etc. Completing the Ortho section are the 5 rotation commands isometric illustrators seem to be constantly using when they are manipulating objects in orthographic.


WOW! How much easier can it get?
